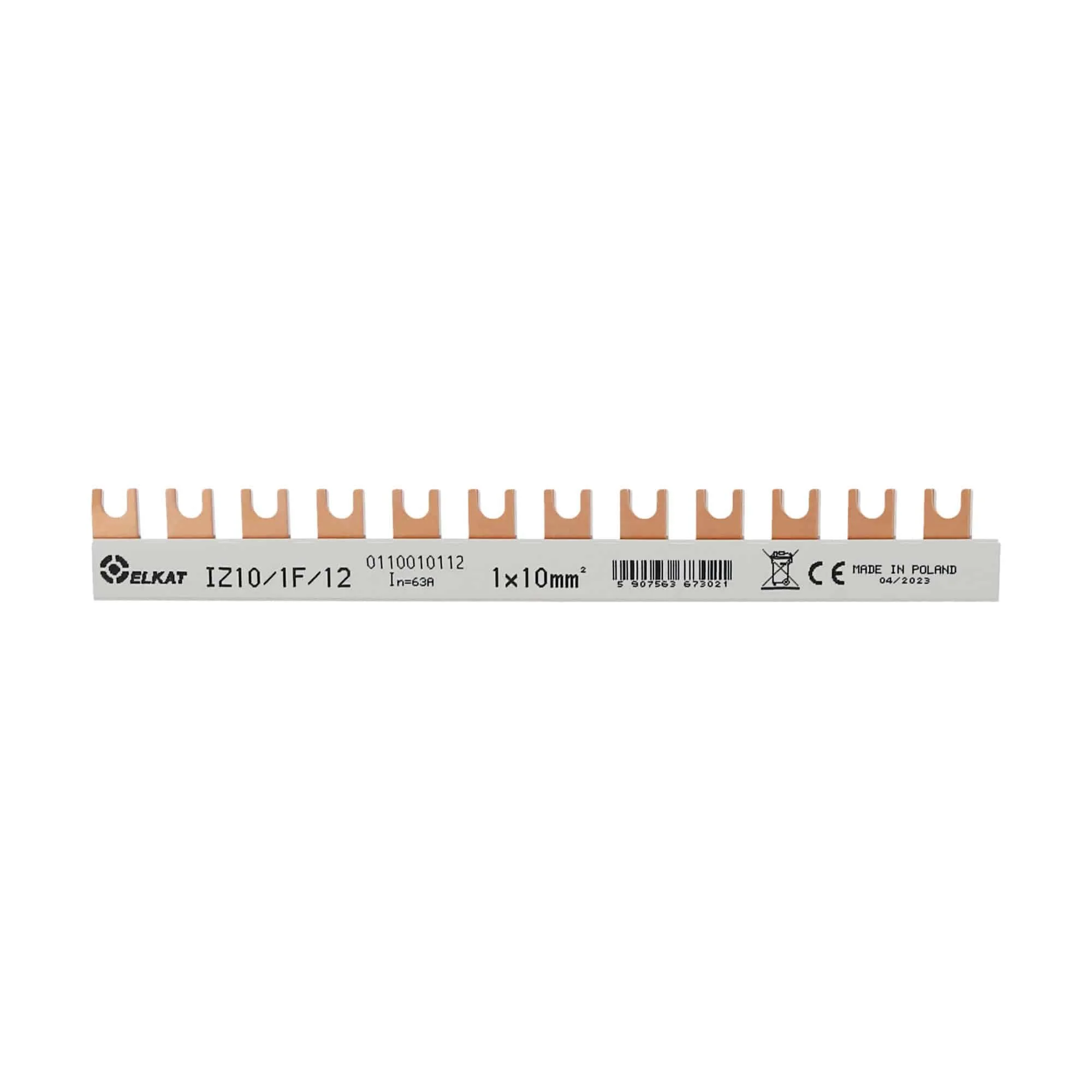

IZ10/1F

1-phase, 63A insulated comb busbar with forks.

    • 1 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-10/1F Endcap Accessory

    • Accessory catalogue number : 03

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0110010112

    • Length - 12 modules - 215 [mm]

    • Packed by 40/2,04 [Kg]

    • Packed by 480 - 24,48 [Kg]

    • Catalogue Number - 0110010154

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 9,44 [Kg]

    • Catalogue Number - 0110010158

    • Length - 58 modules - 1040 [mm]

    • Packed by 40 - 10,40 [Kg]

Z-10/1F endcap accessory

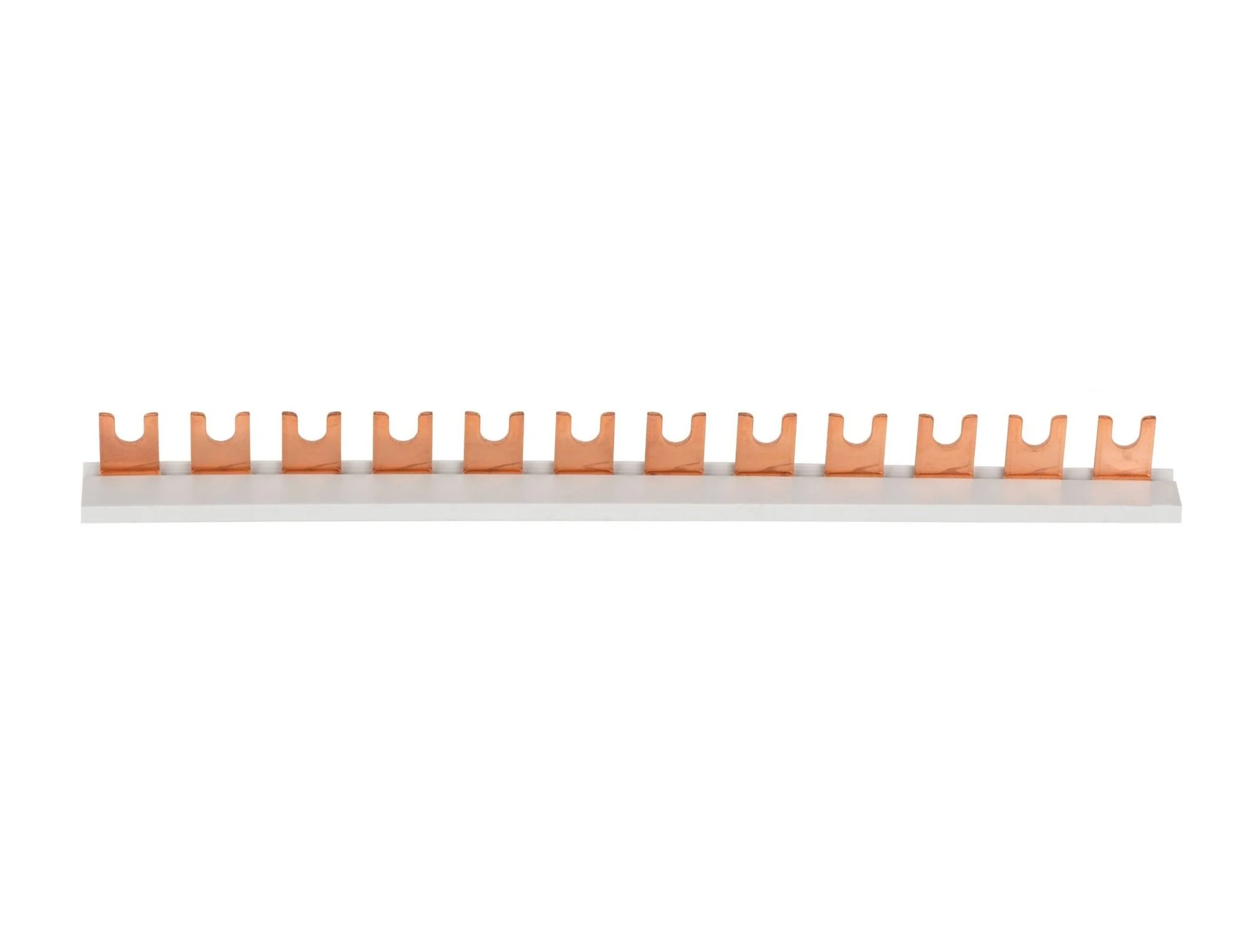

IZ10/1F/L

1-phase, 63A insulated comb busbar with forks, bent 90°

    • 1 Phase

    • 10 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • Z-10/1F/L Endcap Accessory

    • Catalogue number - 18

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110010312

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,04 [Kg]

    • Packed by 480 - 24,48 [Kg]

    • Catalogue Number - 0110010354

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 9,44 [Kg]

    • Catalogue Number - 0110010358

    • Length - 58 modules - 1040 [mm]

    • Packed by 40 - 10,46 [Kg]

Z-1F/L Endcap Accessory

IZ10/1F/N

1-phase, 63A insulated comb busbar with forks in blue.

    • 1 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 5015 BLUE

    • Customisable by Length

    • Customisable Print

    • Z-10/1F Endcap Accessory

    • Accessory catalogue number : 03

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0110012112

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,04 [Kg]

    • Packed by 480 - 24,48[Kg]

    • Catalogue Number - 0110012154

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 9,44 [Kg]

    • Catalogue Number - 0110012158

    • Length - 57 modules - 1025 [mm]

    • Packed by 40 - 10,46 [Kg]

Z-10/1F endcap accessory

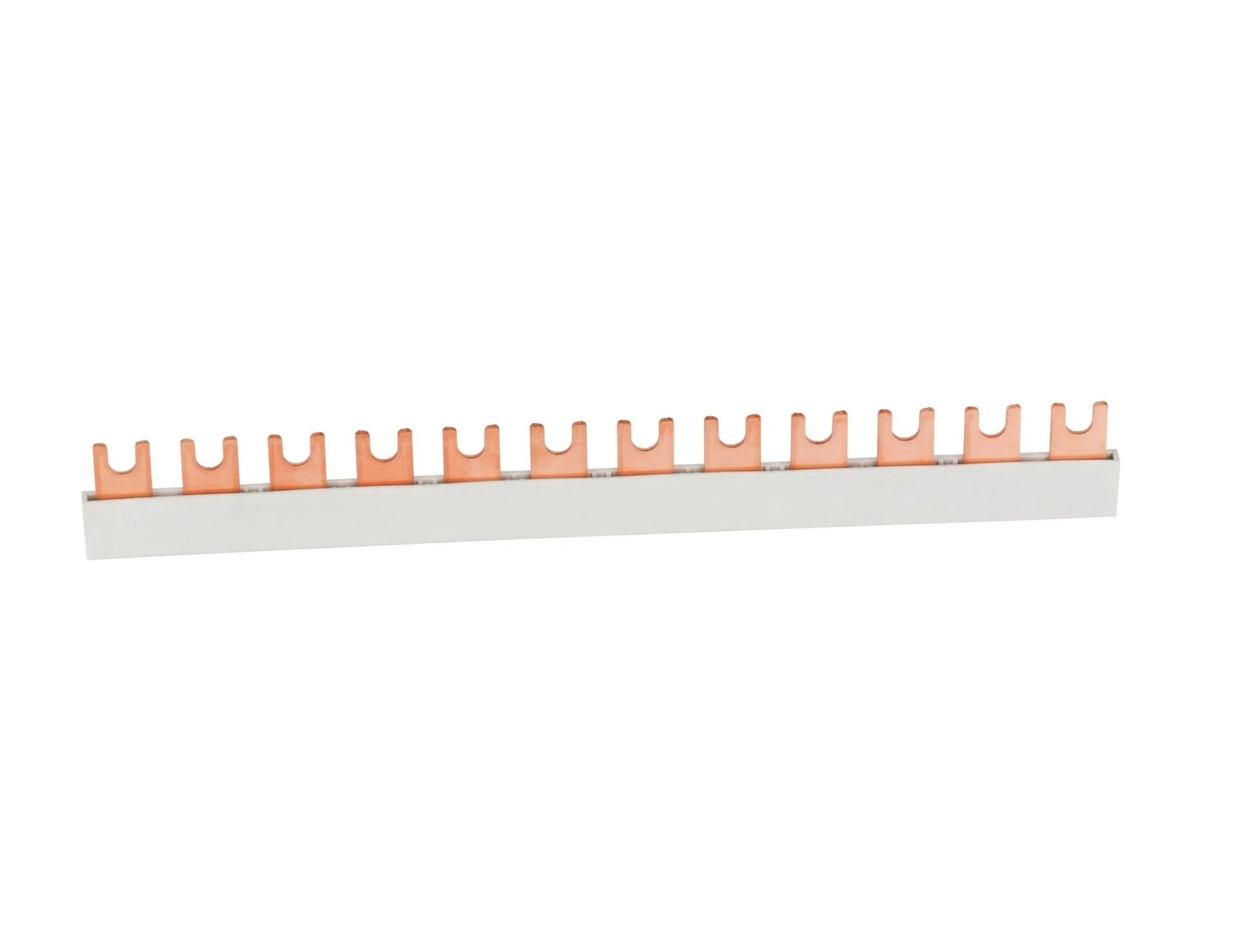

IZ10/1F/C

1-phase, 63A comb busbar with forks, enclosed insulator.

    • 1 Phase

    • 10 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PC-ABS

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm compliance IEC 60947-1, IEC 60947-7-1

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

Standard Variants

    • Catalogue Number - 0110011512

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 1,74 [Kg]

    • Packed by 480 - 20,90 [Kg]

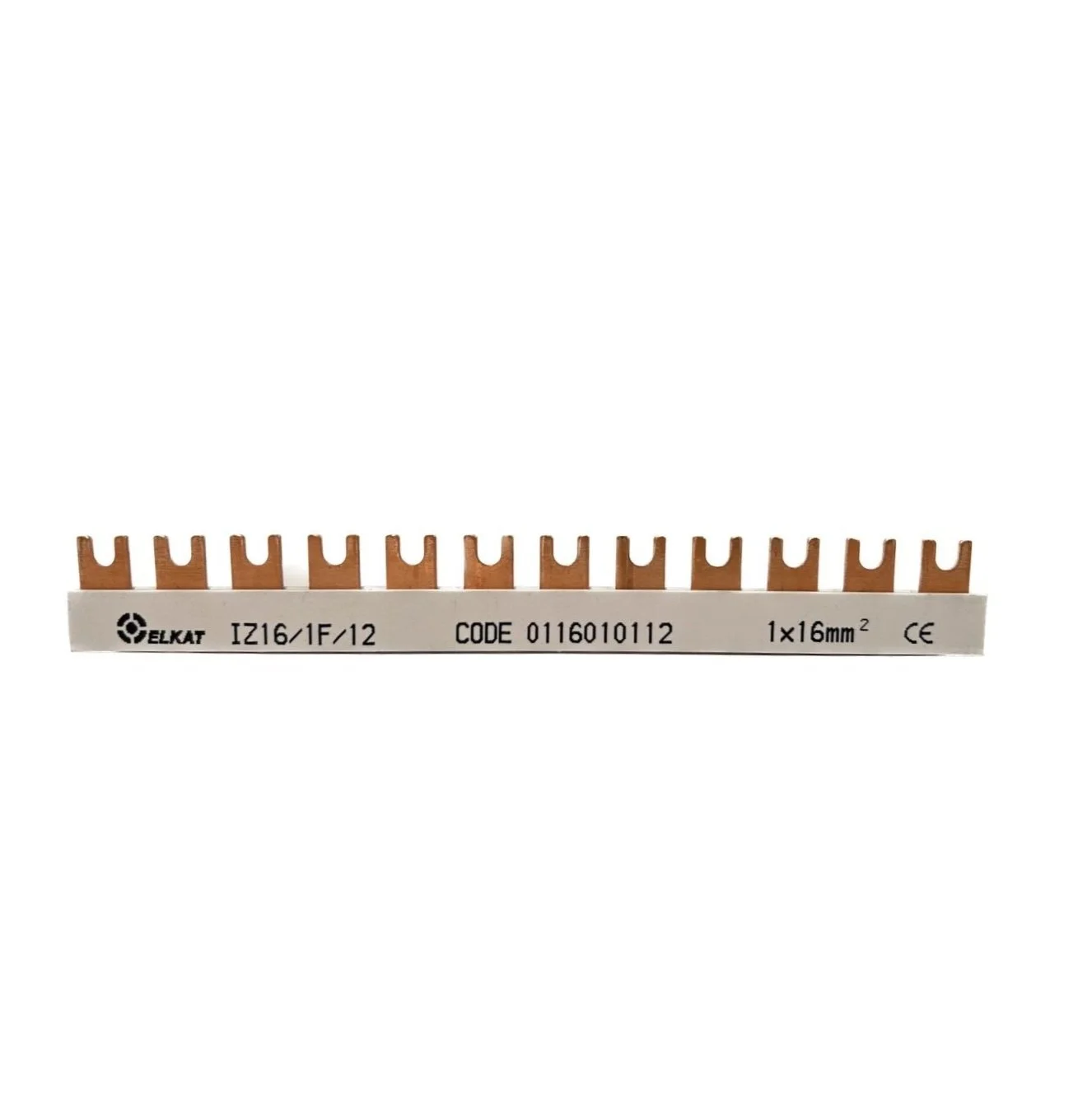

IZ16/1F

1-phase, 100A insulated comb busbar with forks.

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm Compliance IEC 60947-1, IEC 60947-7-1

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 12 and 36 modules

    • We provide suitable endcaps

    • The insulators are divided by phase

    • Z-16/1F Endcap Accessory

    • accessory catalogue number 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0116010112

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,71 [Kg]

    • Packed by 480 - 24,39 [Kg]

    • Catalogue Number - 0116010154

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 12,50 [Kg]

    • Catalogue Number - 0116010158

    • Length - 54 modules - 1025 [mm]

    • Packed by 40 - 13,57 [Kg]

Z-16/1F Endcap Accessory

IZ16/1F/L

1-phase, 100A insulated comb busbar with forks, bent 90°

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • Z-16/1F/L Endcap Accessory

    • Catalogue number - 18

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116010312

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,30 [Kg]

    • Packed by 480 - 27,60 [Kg]

    • Catalogue Number - 0116010354

    • Length - 54 modules - 1000 [mm]

    • Packed by 40- 9,00 [Kg]

Z-16/1F/L Endcap Accessory

IZ16/1F/C

1-phase, 63A comb busbar with forks, enclosed insulator.

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PC-ABS

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm Compliance IEC 60947-1, IEC 60947-7-1

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0116011512

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,46 [Kg]

    • Packed by 480 - 29,74 [Kg]

IZ16/1F/L6,2

1-phase, 100A insulated comb busbar with forks, bent 90°.

    • 1 Phase

    • 16 mm2 cross-section

    • 27 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • ZS-16/1F Endcap Accessory

    • Catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116010302

    • Length - 2 modules - 40 [mm]

    • Packed by 40 - 0,50 [Kg]

    • Packed by 480 - 6,00 [Kg]

    • Catalogue Number - 0116010303

    • Length - 3 modules - 55 [mm]

    • Packed by 40 - 0,70 [Kg]

    • Packed by 480 - 8,40 [Kg]

    • Catalogue Number - 0116010304

    • Length - 4 modules - 75 [mm]

    • Packed by 40 - 0,90 [Kg]

    • Packed by 480 - 10,80 [Kg]

Z-16/1F/L Endcap Accessory

IZ16/1F/STV

1-phase, 100A insulated comb busbar with forks

    • 1 Phase

    • 16 mm2 cross-section

    • 27 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • Z-16/1F Endcap Accessory

    • Catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116010512

    • Length - 12 modules - 320 [mm]

    • Packed by 40 - 3,52 [Kg]

    • Packed by 240 - 21,12 [Kg]

    • Catalogue Number - 0116010536

    • Length - 36 modules - 1000 [mm]

    • Packed by 40- 11,10 [Kg]

Z-16/1F Endcap Accessory
